Green Color Small Hole Anti-theft 358 Security Fence for Enhanced Safety
Description of 358 Security Fence
"358" comes from its measurements 3" x 0.5" x 8 gauges which equates to approx. 76.2mm x 12.7mm x 4mm (Length x height x Diameter) in metric.

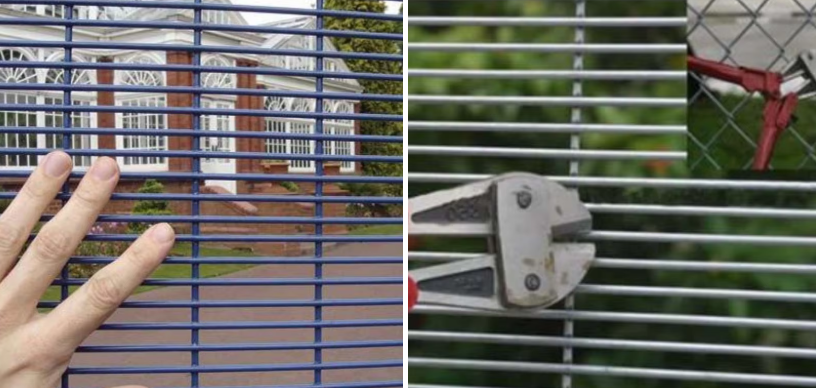

"anti-climb": smaller openings, no place for toe or finger to hold.
358 extra high security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting.
1. Mesh Configuration: 3" × 0.5" (76.2mm × 12.7mm) rectangular mesh, anti-climb design with small vertical openings.
2. Wire Gauge: 8 gauge (4.0mm) high-tensile steel wire, hot-dip galvanized or PVC-coated.
3. Panel Dimensions: Standard height 6ft/8ft (1.8m/2.4m), length 10ft/12ft (3.05m/3.66m); custom sizes available.
4. Material: Low-carbon steel (Q235/Q195) or stainless steel (304/316) for corrosion resistance.
5. Surface Treatment: Hot-dip galvanization (min. 85μm coating thickness) or PVC powder coating (100-120μm, RAL colors optional).
6. Tensile Strength: ≥350MPa (steel wire), ensuring structural stability under impact.
7. Weight: 18-25kg per panel (varies by size and coating type).
8. Connection: Panel-to-post connection via M8/M10 bolts with anti-theft nuts; posts spaced 3.05m/3.66m apart.
9. Application: High-security areas (prisons, airports, power plants, data centers) due to anti-cut/anti-climb features.
Specifications of 358 Security Fence
| Specification of 358 Security Fence |
| Mesh Opening |
Wire Diameter |
Panel Height |
Panel Width |
Post Type |
12.7x76.2mm
(0.5'' x 3'') |
3/3.5/4mm |
1.2-6m |
2.0-3.1m |
Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm |
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm |
|
|
|
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating. |
| Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized. |
| Note:The fence can be customized according to your required if above specification is not satisfied with you. |
Features of 358 Security Fence
· Good viewing visibility, it is a type of high security clear view fencing.
· Welded well at each intersection.
· Intrusion resistant, with extremely strong double vertical wire design.
· Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
· Corrosion resistant with zinc aluminum alloy and PVC powder coating.
· Surface finish after welding, every weld-point are protected well.
· High strength with fully integrated with posts and anti-tamper fixings.

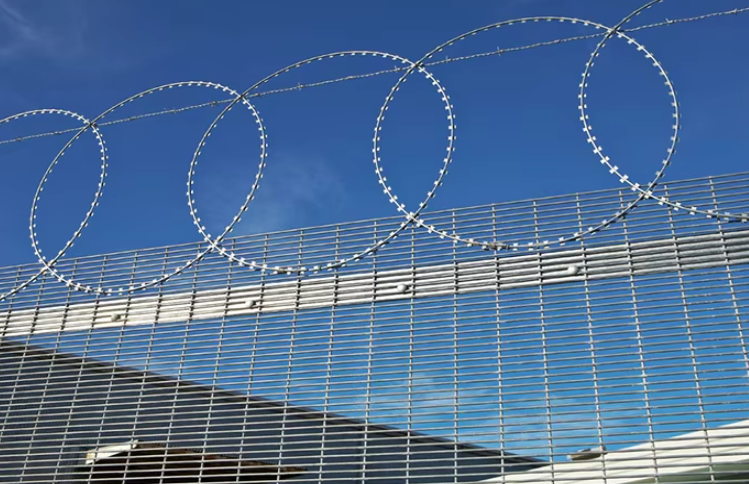

· Fence security toppings are optional.
· Easy for installation and free maintenance.
· 5 year warranty.
Applications of 358 Security Fence
· Bridge anti-climb guarding & guard safety screening.
· Psychiatric hospital security fencing.
· Prison security fencing.
· Factory machine guards.
· Walkway security fencing.
· Airport security fencing.
· Shipping Port Security fencing.
· Electrical sub-station fencing.
· Gas pipelines security fence.
· High security living area and private field fence.
